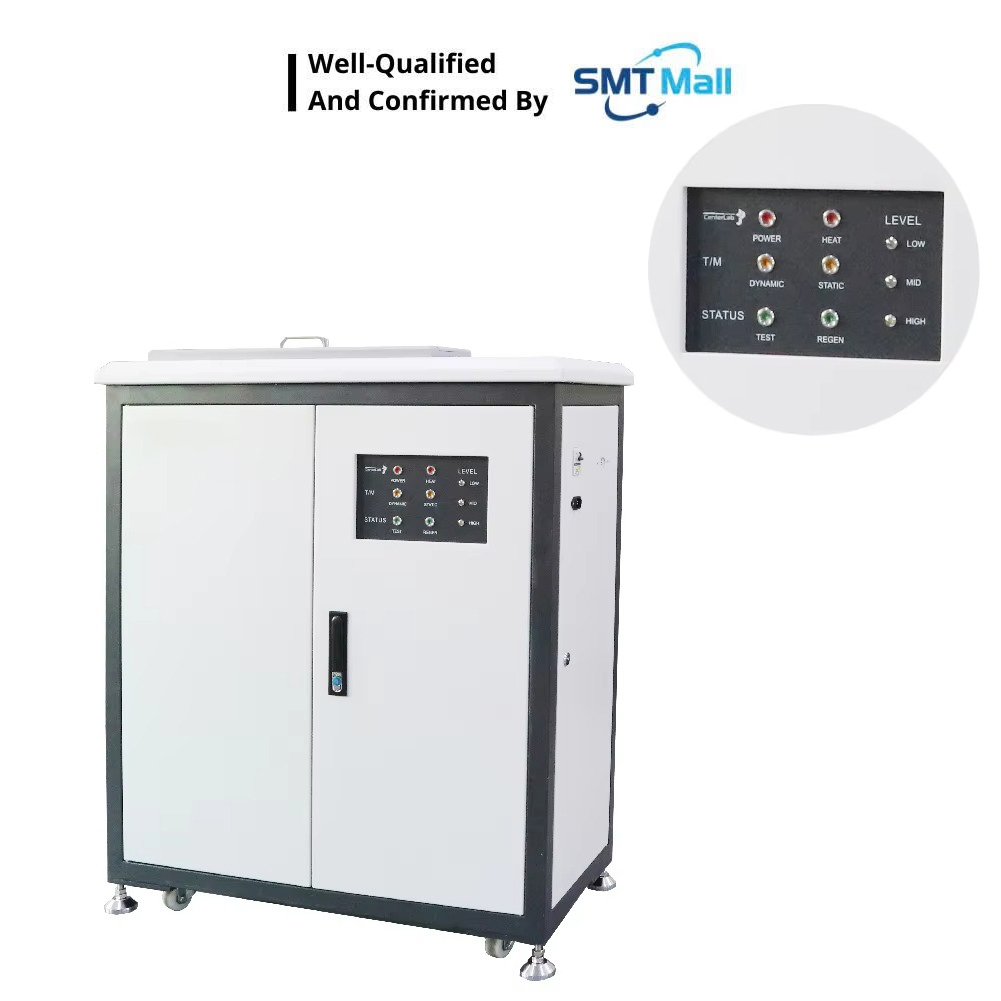

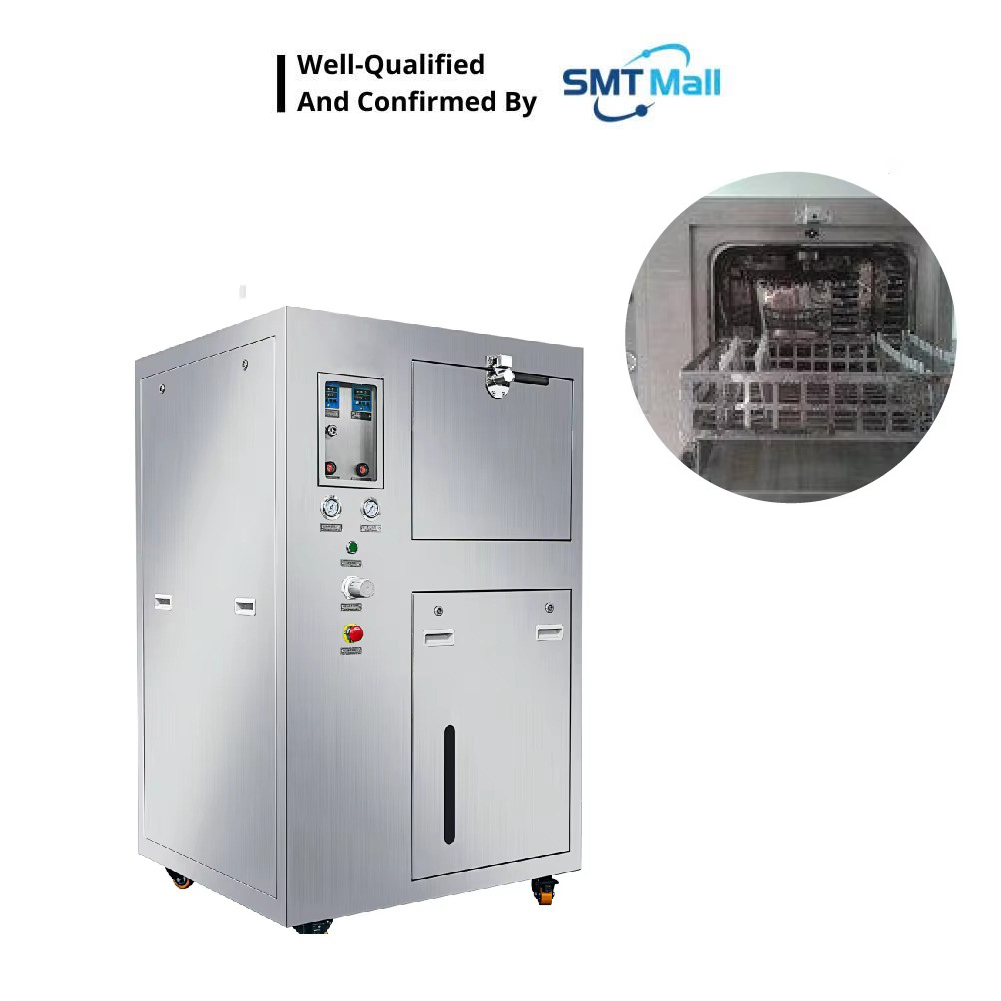

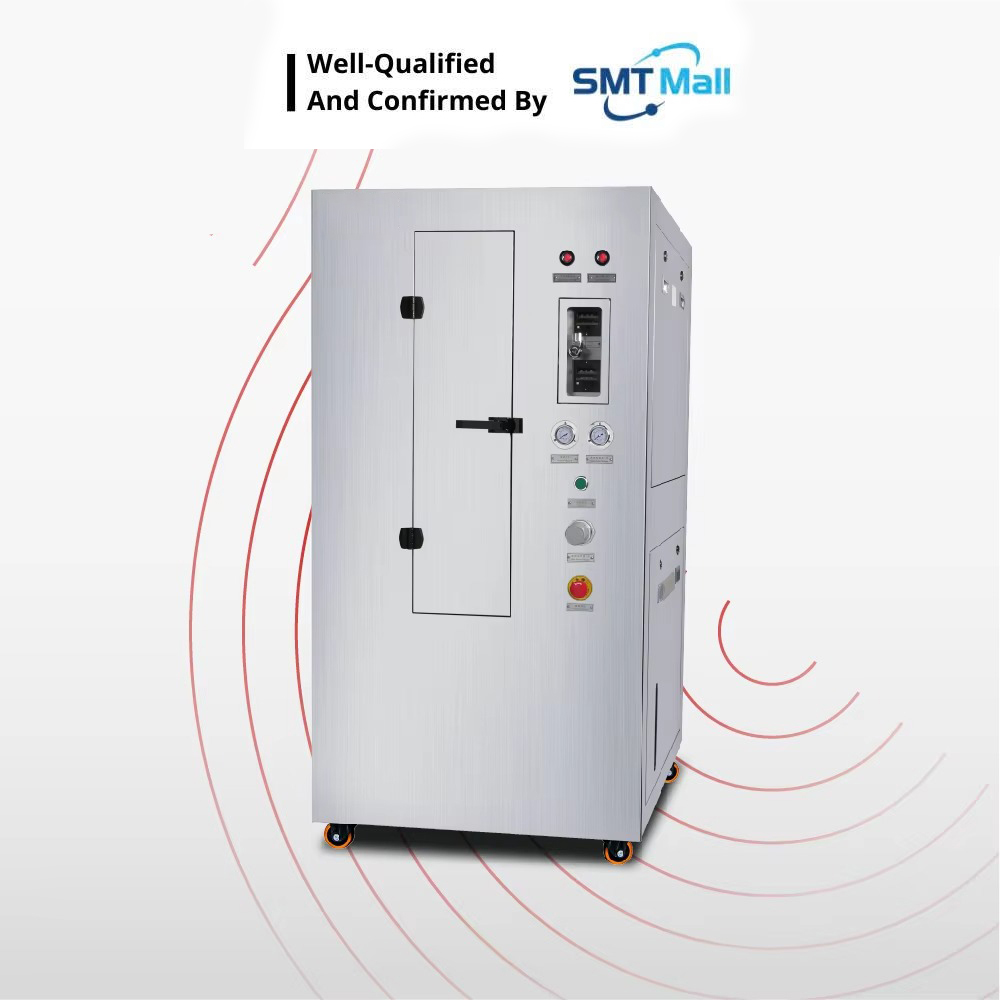

SMT Automatic Stencil Cleaning Machine
51,816.87 $
Key Features and Technologies
-
High-Performance Cleaning: 360° rotating liquid spray system ensures thorough stencil cleaning.
-
Efficient Filtration: Three-stage filtration removes contaminants effectively.
-
Safe Operation: Pneumatic operation eliminates electricity and fire hazards.
-
Durable Material: SUS304 stainless steel construction – corrosion-resistant and environmentally compliant.
-
User-Friendly: One-button operation, automatic draining, and modular maintenance.
-
Certified Compliance: RoHS certified for environmental safety and global market access.
Product Overview
The SMT Automatic Stencil Cleaning Machine is a fully automatic industrial cleaning system designed for precision cleaning of stencils, screens, and PCBA-related components in SMT and electronics manufacturing processes.
Utilizing advanced aqueous and ultrasonic cleaning technology, the system ensures effective removal of contaminants such as solder paste, SMD adhesives, flux residues, oil, grease, and dust. This helps maintain high product quality, improve process consistency, and extend stencil service life.
Engineered for reliability and efficiency, the machine features a multi-stage cleaning process with controlled temperature drying, making it an ideal solution for high-volume production environments.
Technical Specifications
| Item | Description |
| Machine Type | Industrial Ultrasonic Cleaner |
| Cleaning Process | Cold Water Cleaning |
| Cleaning Type | Aqueous / Ultrasonic Cleaning |
| Material Compatibility | Metal / Coil |
| Application | Burnishing / Precision Cleaning |
| Power Source | Electric |
| Dimensions (L×W×H) | 800 × 950 × 1650 mm |
| Weight | 1600 kg |
| Cleaning Basket Size | 610 × 560 × 100 mm (2 layers) |
| Spray Tank Capacity | 17 L |
| Concentrate Capacity | 32 L |
| Dilution Tank Capacity | 60 L |
| Cleaning Time | 5 – 20 minutes |
| Rinse Time | 1 – 2 minutes per cycle |
| Hot Air Drying Time | 10 – 30 minutes |
| Drying Temperature | Room temperature – 99°C |
| DI Water Supply | 30 – 65 L/min |
| Warranty | 1 Year |
Key Highlights
- Fully automatic aqueous cleaning system for SMT applications
- Integrated ultrasonic cleaning for enhanced precision and efficiency
- Multi-stage process: Cleaning → Rinsing → Hot Air Drying
- Adjustable cleaning and drying parameters for process flexibility
- High-efficiency contaminant removal (solder paste, flux, adhesives)
- Dual-layer basket design for increased throughput
- Stable and consistent cleaning performance for high-volume production
Applications
This system is ideal for precision cleaning in SMT and electronics manufacturing, including:
- SMT stencil and screen cleaning
- PCBA cleaning and maintenance
- Removal of solder paste, SMD adhesives, and flux residues
- Cleaning of metal components and precision parts
The machine supports a wide range of aqueous cleaning agents and is compatible with standard industry materials, making it suitable for diverse production environments.
